Open Frame Power Supply

2" x 4", 3" x 5" standard form factors are available for selection. Modified standard and custom designs are welcome.

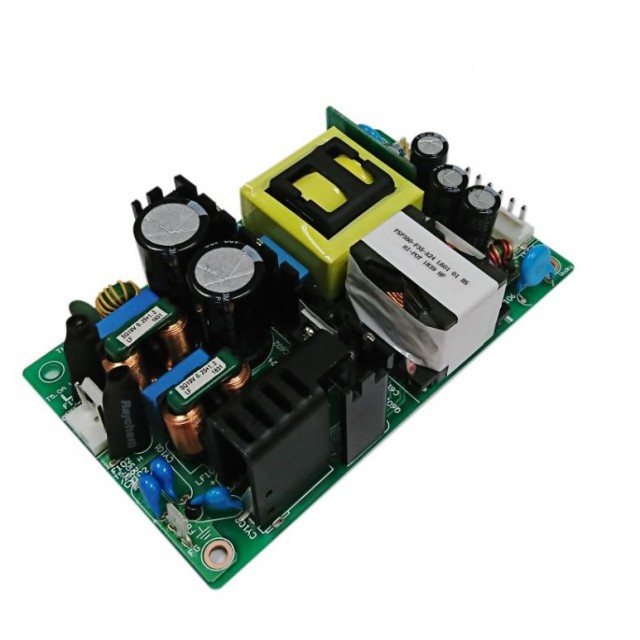

  • Class-I safety construction
  • IEC 62368-1 safety standard
  • EN 55032 Class B conducted emissions
  • Dimension 2"x4"x1.126"
  • 250W at 14  CFM forced air cooling or 150W at convection cooling

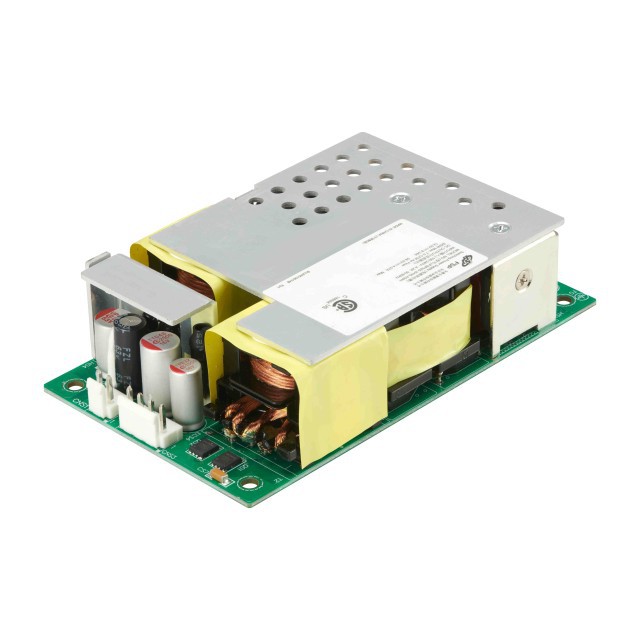

  • Class-I design
  • IEC 62368-1 safety standard
  • Rated 550W dual outputs for PoE application
  • Dimension 190 x 90 x 33.4 mm (above PCB)
  • Isolated between 12V & 54V outputs

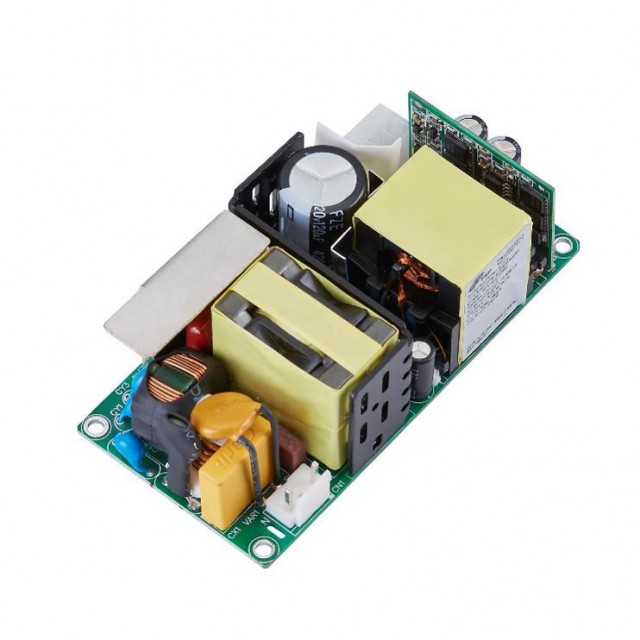

  • Class-I design 350W @ 54V
  • Designed to meet IEC 60950-1 & IEC 62368-1
  • Dimensions 3 x 5 x 1.34  inch
  • No load power consumption less than 0.5W

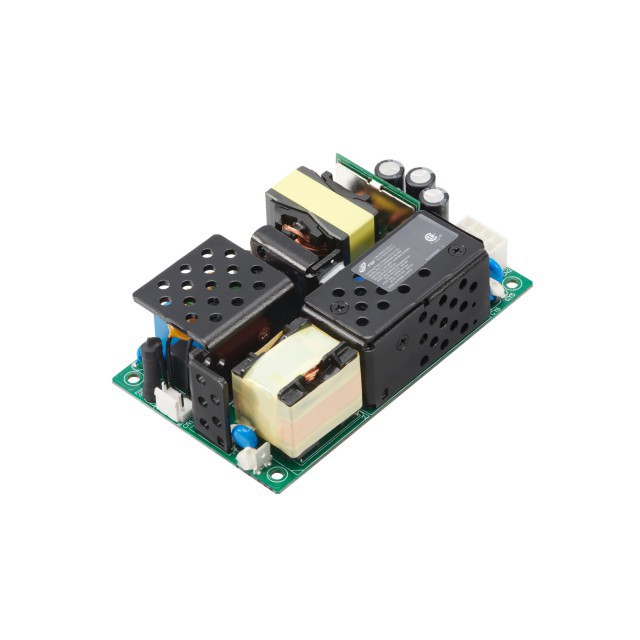

  • Class-I design 350W @ 24V
  • Designed to meet IEC 60950-1 & IEC 62368-1
  • Dimensions 3 x 5 x 1.34  inch
  • No load power consumption less than 0.5W

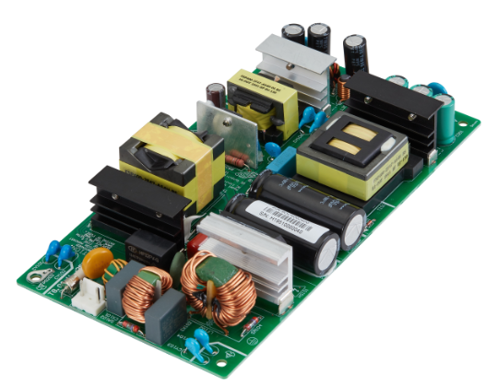

  • Class-I design 350W @ 18V
  • Designed to meet IEC 60950-1 & IEC 62368-1
  • Dimensions 3 x 5 x 1.34  inch
  • No load power consumption less than 0.5W
  • Class-I design 350W @ 12V
  • Designed to meet IEC 60950-1 & IEC 62368-1
  • Dimensions 3 x 5 x 1.34  inch
  • No load power consumption less than 0.5W

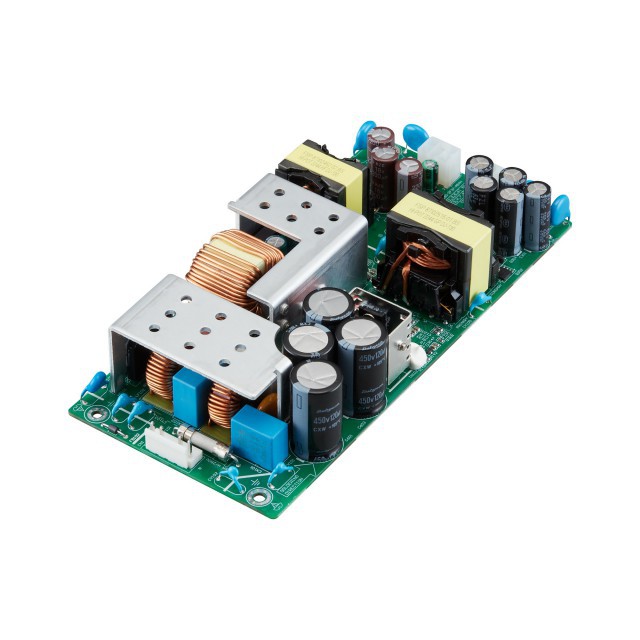

  • Class-I design 300W @ 48V with +5Vsb AUX
  • Low profile 3 x 6 x 1.38 inch
  • Low power consumption at standby mode
  • Isolated between PE and RETURN

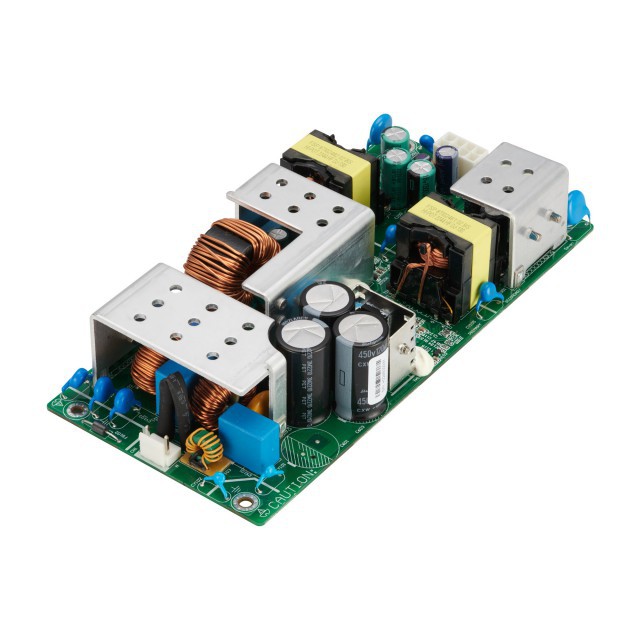

  • Class-I design 300W @ 36V with +5Vsb AUX
  • Low profile 3 x 6 x 1.38 inch
  • Low power consumption at standby mode
  • Isolated between PE and RETURN
  • Class-I design 300W @ 30V with +5Vsb AUX
  • Low profile 3 x 6 x 1.38 inch
  • Low power consumption at standby mode
  • Isolated between PE and RETURN
  • Class-I design 300W @ 24V with +5Vsb AUX
  • Low profile 3 x 6 x 1.38 inch
  • Low power consumption at standby mode
  • Isolated between PE and RETURN
